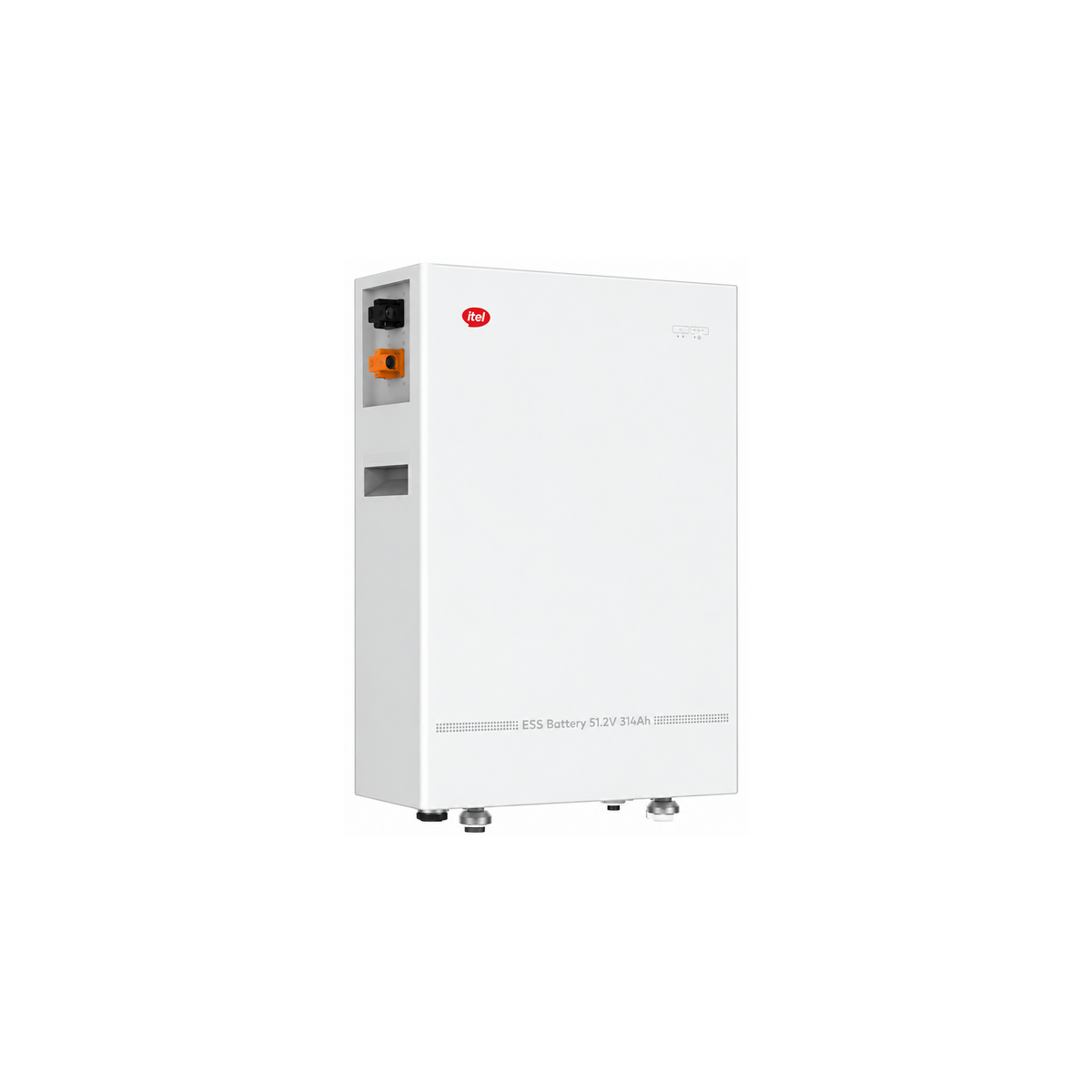

itel Energy IPL-51314H – 51.2V 314Ah LiFePO4 Battery, 16.08kWh

itel Energy IPL-51314H 51.2V 314Ah LiFePO4 Battery Available in Kinshasa, DRC

Store energy for your home or business with the itel Energy IPL-51314H. This 51.2V 314Ah LiFePO4 battery provides 16.08kWh of nominal energy for compatible 48V inverter systems.

Designed for indoor, floor-standing installation, it features CAN and RS485 communication and supports up to 32 batteries in parallel in a compatible configuration. The supplied specification sheet lists pairing with the itel Energy IPV-12K48U 12kW inverter.

🔑 Key Features

• 16.08kWh Nominal Energy: Energy storage for homes, shops and offices requiring extended backup.
• 51.2V 314Ah Capacity: Designed for compatible 48V systems.
• LiFePO4 Technology: Lithium iron phosphate battery chemistry.
• 6,000+ Cycles: Cycle life stated at 80% depth of discharge in the supplied specification sheet.
• 90% Recommended Depth of Discharge: Recommended discharge level stated in the supplied specification sheet.
• 157A Maximum Continuous Current: Rating stated in the supplied specification sheet.
• Communication Interfaces: CAN and RS485.
• Parallel Expansion: Supports up to 32 batteries in a compatible parallel configuration.
• Indoor Floor-Standing Installation: Designed for a fixed indoor energy storage system.

⚙️ Technical Specifications

🔌 Suitable For

When paired with a compatible inverter, this battery can support refrigerators, freezers, TVs, fans, lighting and compatible air conditioners or office equipment. Combined running loads and appliance starting requirements must remain within both the battery’s and inverter’s limits.

System sizing: A 12kW inverter pairing does not mean one battery can supply 12kW continuously. Available output depends on battery voltage, the 157A continuous current limit, inverter losses and system settings.

🔋 Estimated Runtime with IPV-12K48U Inverter

The following estimates are listed in the supplied specification sheet for one IPL-51314H 16.08kWh battery paired with the IPV-12K48U inverter.

Runtime figures are estimates from the supplied specification sheet. Each row represents a separate usage example. Actual runtime depends on appliance consumption, usable battery capacity, inverter losses, system settings, temperature and battery condition. The cycle-life rating is stated at 80% DoD; the separately listed recommended depth of discharge is 90%.

Heavy-load configuration: The supplied sheet also lists an 8,000W load example with approximately 1.7 hours of runtime. This requires confirmation against the battery’s 157A continuous current limit and inverter losses before being used as a single-battery performance claim.

Note: Technical details follow the supplied IPL-51314H specification sheet. The inverter is shown for pairing and runtime reference; confirm package contents before ordering.
